Inserted Fixing Magnet
Inserted fixing magnet is magnetic shuttering solutions for precast concrete industry!
In fact, construction market is too small compared to all Neodymium magnet markets, and Square Neodymium Magnets is also too small to extensive construction accessories. Almost none of magnet suppliers have interest or knowledge in the application of magnet in the construction market. We focus our assembly attention on developing and manufacturing Neodymium magnet assemblies for the construction industry, especially precast concrete industry.

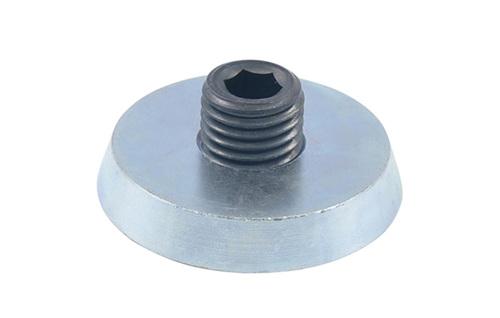

If the embedded component is not positioned accurately during concrete casting or vibrating process, the lifting operation will be effected and then the quality of precast concrete elements and operation safety can't be ensured. The inserted fixing magnet consists of a ring NdFeB (Neodymium-iron-boron) magnet, steel casing and threaded rod. Our inserted fixing magnet is designed to conveniently fasten embedded components in precast concrete elements, such as the electric sockets, threaded sleeves, weld-on plates, etc. Simple solutions make efficient work possible.
Inserted Fixing Magnet Characteristics:
Reusable and durable
Easy to operate
Quick to position, and then improve efficiency and cost
No screws, bolts or welding necessary to accurately position magnets on formworks therefore preserving surface finish to increase the lifetime
Advantages over Competitors:
Unbeatable know-how in Neodymium magnet, the most important component to ensure quality of inserted fixing magnet
More sizes available to save tooling cost
Standard sizes in stock and available for immediately delivery
Custom-made solutions available upon request
Technical Data:
|
Part Number
|
D
(mm)
|
D1
(mm)
|
H
(mm)
|
M
(mm)
|
Maximum Operating Temperature
(°C)
|
|
HM-IN45-M8
|
45
|
40
|
8
|
8
|
80
|
|
HM-IN45-M10
|
45
|
40
|
8
|
10
|
80
|
|
HM-IN54-M12
|
54
|
48
|
10
|
12
|
80
|
|
HM-IN54-M16
|
54
|
48
|
10
|
16
|
80
|
|
HM-IN60-M20
|
60
|
54
|
10
|
20
|
80
|
|
HM-IN77-M24
|
77
|
73
|
12
|
24
|
80
|
More information please view here.
